Grundfos SEV.100.100.30.4.50B Pump
Spare Parts for SEV.100.100.30.4.50B Wastewater Pump
Product Summary
The Grundfos SEV.100.100.30.4.50B is a 3.0 kW heavy-duty submersible wastewater pump featuring a SuperVortex impeller for handling solids up to 100 mm. Designed for municipal and industrial applications, this 4-pole unit offers reliable clog-free operation. It allows for flexible installation, including submerged auto-coupling or dry installation (vertical/horizontal) without separate motor cooling.
- SuperVortex Impeller: Features a vortex impeller design (Pos. 49) creating a strong flow ensuring the passage of long fibres and solids up to 100 mm.
- Dry & Wet Installation: The motor is enclosed and watertight, allowing the pump to be installed dry (vertical/horizontal) or submerged.
- Cartridge Shaft Seal: The primary seal (Pos. 105) is a cartridge unit, facilitating quick replacement and ensuring a reliable barrier between liquid and motor.
- Clamp Connection: A stainless steel clamp (Pos. 92) connects the pump housing and motor, enabling tool-free disassembly and 360° rotation.
- Watertight Cable Plug: The cable entry (Pos. 1) uses a polyurethane-embedded plug to prevent moisture ingress into the motor windings.
Spare Parts List
| Select | Qty | Part Number | Description | Material / Spec |
|---|---|---|---|---|
| 1 | 96102361 | Shaft Seal Kit (Cartridge) | NBR / SiC-SiC | |
| 1 | 96102369 | O-Ring Service Kit | NBR | |
| 1 | 96690704 | Bearing Kit (Upper & Lower) | Steel | |
| 1 | 96592063 | Clamp Connection Kit | Stainless Steel | |
| 1 | 96689958 | Cable 10m (4G 2.5 + 3x1mm2) | Lyniflex | |
| 1 | 96690434 | Lifting Bracket | Stainless Steel 1.4301 | |
| 1 | 96586753 | Oil (1 Litre) | Paraffinic Oil | |
| 1 | Pos. 49 | Impeller (SuperVortex) | Cast Iron | |
| 1 | Pos. 50 | Pump Housing | Cast Iron | |
| 1 | Pos. 1 | Cable Plug Assembly | Polyurethane | |
| 2 | Pos. 193 | Oil Screw | Steel |

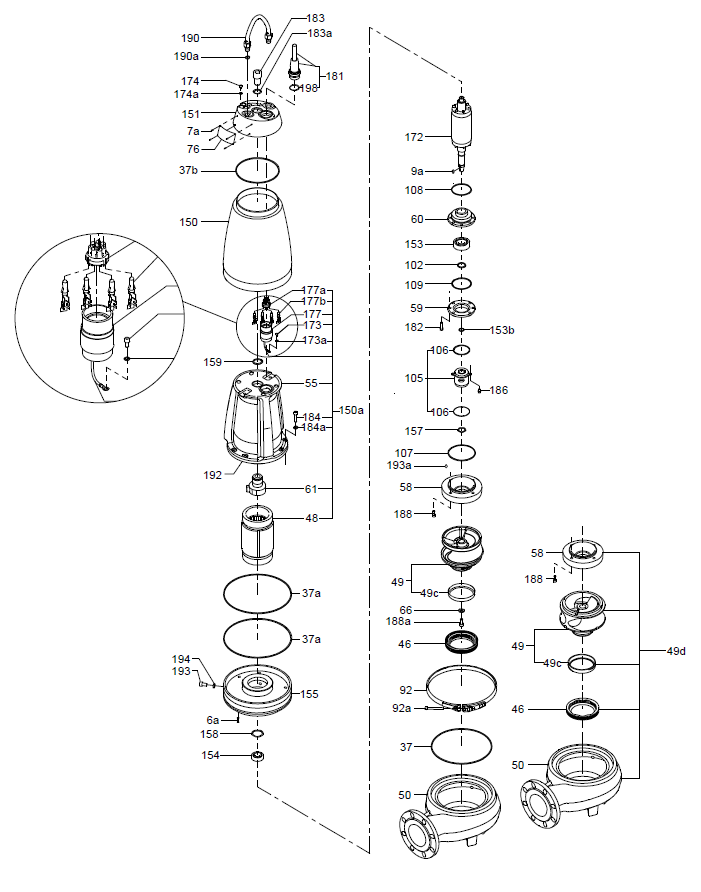

Exploded Parts Views
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model / Curve | SEV.100.100.30.4.50B |
| Rated Power | 3.0 kW (4.0 hp) |
| Voltage / Frequency | 3 x 400-415 V / 50 Hz |
| Rated Current | See Motor Nameplate |
| Discharge Connection | DN 100 (Flange) |
| Impeller Type | SuperVortex (100 mm Free Passage) |
| Installation Type | Submerged (S) or Dry (D) |
Troubleshooting, Common Faults & Solutions
Pump does not start / Fuses blow
Likely Cause: Power supply failure, motor windings shorted, or impeller blocked.
Action / Part: Check cable/motor and clean Impeller (Pos. 49).
Motor trips shortly after start
Likely Cause: Low setting of thermal relay, voltage drop, or wrong rotation.
Action / Part: Adjust relay to nameplate, check voltage, swap phases.
Below-standard performance
Likely Cause: Impeller blocked by impurities or wrong direction of rotation.
Action / Part: Clean Impeller (Pos. 49) or correct phase connection.
High power consumption (SEV)
Likely Cause: Impeller blocked by impurities or wrong direction of rotation.
Action / Part: Clean Impeller (Pos. 49) or swap two phases.
Pump runs but gives no liquid
Likely Cause: Outlet valve closed/blocked or air lock in pump.
Action / Part: Check valves and vent the pump.
