Mono Epsilon E16B Pump
Spare Parts for Epsilon E16B Pump
Product Summary
The Mono Epsilon E16B is a premium two-stage progressive cavity pump featuring advanced flexishaft drive technology for superior performance in demanding industrial applications. Engineered for exceptional reliability and efficiency, this pump delivers smooth, continuous flow with minimal pulsation across a wide range of viscosities.
- Flexishaft Drive System: Innovative flexible shaft technology eliminates the need for universal joints, reducing maintenance requirements and extending operational life significantly
- Bi-Directional Operation: Unique capability to pump in either direction provides exceptional installation flexibility and process control options
- Two-Stage Design: Enhanced pressure capabilities through dual-stage configuration delivers superior performance for high-pressure applications up to 12 bar
- Suction Excellence: Achieves exceptional suction lift beyond 8 metres, enabling flexible positioning above product level for convenient maintenance access
- Material Versatility: Available in cast iron or stainless steel construction with multiple elastomer options to suit diverse chemical compatibility requirements
Spare Parts List
| Select | Qty | Part Number | Description | Material / Spec |
|---|---|---|---|---|
| 1 | E16B-KIT-FULL | Complete Rotor/Stator Service Kit | Includes rotor, stator, gaskets | |
| 1 | E16B-KIT-SEAL | Mechanical Seal Service Kit | Complete seal assembly with gaskets | |
| 1 | E16B-KIT-FLEX | Flexishaft Service Kit | Complete flexishaft assembly with clamps | |
| 1 | 22A | Stator Assembly | Nitrile rubber elastomer - 21.49 kg | |
| 1 | 25A | Rotor Assembly | Stainless steel helical - 15.44 kg | |
| 1 | 26A | Flexishaft Assembly | Stainless steel flexible drive - 3.7 kg | |
| 1 | 32A | Drive Shaft | 65mm diameter, hardened steel - 4.3 kg | |
| 1 | 10A | Mechanical Seal Assembly | DIN L1K type, 65mm shaft | |
| 1 | 65A | Mechanical Seal Carrier | Gland section housing | |
| 1 | 27A | Drive Clamp | Flexishaft to rotor coupling | |
| 2 | 27B | Drive Clamp Pin | Hardened steel retaining pin | |
| 1 | 29C | Shaft Pin | Hardened steel | |
| 2 | 75A | Sleeve | Stainless steel protective sleeve | |
| 4 | 95A | Stator Tie Bar | High tensile steel tie rod | |
| 1 | 23A | Suction Chamber | Cast iron or stainless steel housing | |
| 1 | 23B | Suction Chamber Extension | Inspection port housing | |
| 1 | 24A | End Cover | Cast iron or stainless steel end plate | |
| 1 | 01A | Pump Body | Main casing assembly | |
| 1 | 42A | Thrower | Shaft protection disc | |
| 1 | 15A | Thrower Guard | Protective cover assembly | |
| 1 | 66A | Abutment Ring | Seal support ring | |
| 2 | 62A | Support Foot | Cast iron mounting foot | |
| 1 | 76A | Adaptor Flange | Body adaptor connection | |
| 1 | 20B | Gland Gasket | Non-asbestos material | |
| 1 | 20C | Suction Chamber Gasket | Non-asbestos material | |
| 2 | P401 | Toroidal Seal Ring | Nitrile rubber O-ring | |
| 2 | P402 | Toroidal Seal Ring (Large) | Nitrile rubber O-ring | |
| 2 | P403 | Toroidal Seal Ring (Medium) | Nitrile rubber O-ring | |
| 2 | P404 | Toroidal Seal Ring (Small) | Nitrile rubber O-ring | |
| 8 | P513 | Drive Clamp Bolt | High tensile hex head bolt | |
| 8 | P512 | Spring Washer | Single coil spring steel | |
| 8 | P105 | Hex Nut M12 | Grade 8 steel | |
| 8 | P106 | Flat Washer M12 | Bright steel | |
| 8 | P107 | Spring Washer M12 | Single coil spring steel | |
| 2 | P201 | Taper Plug | Threaded inspection plug | |
| 2 | P202 | Taper Plug (Drain) | Threaded drain plug | |
| 1 | BP-LC2 | Bearing Grease | BP LC2 / Mobilgrease XHP 222 equivalent | |
| 1 | LOCTITE-5910 | Thread Sealant | Loctite 5910 for shaft assembly |

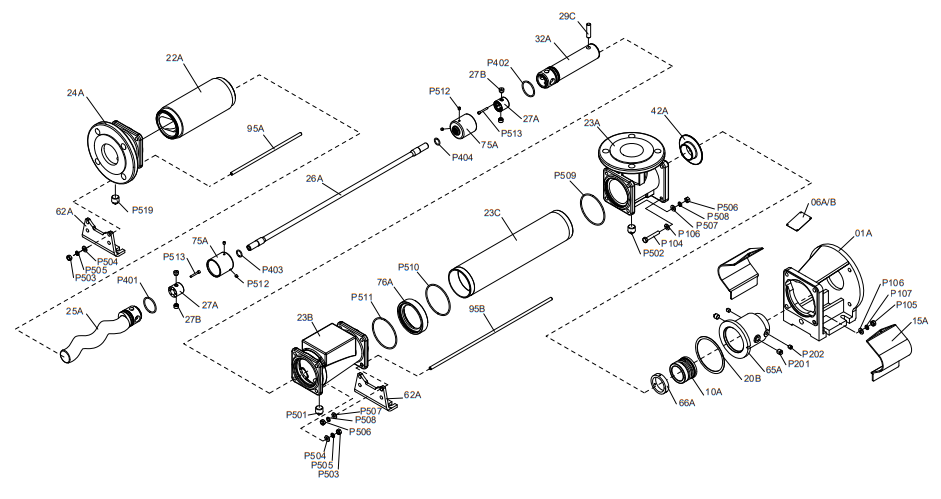

Exploded Parts Views
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model / Curve | Epsilon E16B / Two-Stage |
| Rated Power | Varies by application (typically 4.0 - 11 kW) |
| Voltage / Frequency | 240V/415V / 50Hz (other voltages available) |
| Rated Current | Application dependent |
| Discharge Connection | Flanged (size varies by application) |
| Impeller Type | Progressive Cavity (Helical Rotor/Stator) |
| Installation Type | Horizontal Baseplate Mounted |
Troubleshooting, Common Faults & Solutions
No Discharge from Pump
Likely Cause: Incorrect rotation direction, pump unprimed, or blocked delivery line
Action / Part: Verify motor rotation matches nameplate arrow, prime pump with liquid, clear blockages in discharge pipework
Loss of Capacity / Reduced Flow
Likely Cause: Worn rotor/stator elements, insufficient NPSH, or air entering suction line
Action / Part: Replace rotor (25A) and/or stator (22A), increase suction head, check gland adjustment and pipe joints for air leaks
Pump Stalls at Start-Up
Likely Cause: Product viscosity too high, low voltage, or drive train failure
Action / Part: Heat product to reduce viscosity, verify electrical supply voltage, inspect coupling rod (26A) and pin joints (29A, 29B, 29C) for damage
Excessive Noise and Vibration
Likely Cause: Misaligned coupling, worn bearings, or insecure pump mounting
Action / Part: Check and adjust alignment to motor/gearbox, replace shaft bearings (lubricate with BP LC2 grease), tighten all baseplate mounting bolts
Excessive Gland or Seal Leakage
Likely Cause: Worn drive shaft, damaged mechanical seal, or inadequate gland flush
Action / Part: Replace drive shaft (32A) if gland area worn, install new mechanical seal assembly (10A), ensure proper seal flush fluid flow
Motor Overheats / Excessive Power Draw
Likely Cause: Delivery pressure above rated limit, gland overtightened, or pump speed too high
Action / Part: Check for delivery line blockages, loosen packed gland to allow slight drip, reduce pump speed, verify relief valve setting
Rapid Stator Wear / Premature Failure
Likely Cause: Dry running, abrasive product, or product temperature exceeding rating
Action / Part: Install dry-run protection device, ensure pump always primed before starting, cool product or upgrade to temperature-rated stator material, replace with new stator (22A)
Stuffing Box Rapidly Consumes Packing
Likely Cause: Worn shaft surface in packing area
Action / Part: Inspect drive shaft (32A) for wear grooves, replace shaft if gland area damaged, ensure regular gland maintenance schedule
