Mono Epsilon E19B Pump
Spare Parts for Epsilon E19B Pump
Product Summary

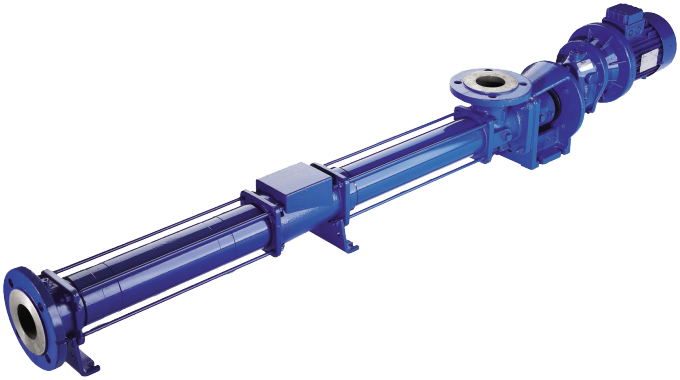

The Mono Epsilon E19B is a heavy-duty two-stage progressive cavity pump designed for demanding industrial applications requiring high-pressure fluid transfer. Featuring robust construction and advanced flexishaft drive technology, this pump delivers exceptional performance with superior reliability in harsh operating environments.
- Flexishaft Drive System: Maintenance-free flexible shaft transmission eliminates universal joints, reducing wear points and extending service life with minimal downtime requirements
- Heavy-Duty Construction: Engineered for industrial-grade performance with reinforced components capable of handling abrasive fluids and sustained high-pressure operation
- Exceptional Suction Capability: Achieves suction lift exceeding 8 metres with self-priming operation, enabling flexible installation configurations and versatile system design
- Bi-Directional Operation: Capable of reversible rotation for specialized applications, providing operational flexibility for diverse pumping requirements
- Comprehensive Material Options: Available in cast iron or stainless steel construction with multiple elastomer choices to suit specific chemical compatibility needs
Spare Parts List
| Select | Qty | Part Number | Description | Material / Spec |
|---|---|---|---|---|
| 1 | E19B-KIT-FULL | Complete Rotor/Stator Service Kit | Includes rotor, stator, gaskets | |
| 1 | E19B-KIT-SEAL | Mechanical Seal Service Kit | Complete seal assembly with gaskets | |
| 1 | E19B-KIT-FLEX | Flexishaft Service Kit | Complete flexishaft assembly | |
| 1 | 22A | Stator Assembly | Nitrile rubber - 65.93 kg | |
| 1 | 25A | Rotor Assembly | Stainless steel helical - 47.63 kg | |
| 1 | 26A | Flexishaft Assembly | Stainless steel flexible shaft - 7.2 kg | |
| 1 | 32A | Drive Shaft | 85mm diameter, hardened steel - 4.7 kg | |
| 1 | 27A | Drive Clamp Assembly | Hardened steel taper clamp | |
| 2 | 27B | Drive Clamp Pin | Hardened steel securing pin | |
| 1 | 10A | Mechanical Seal Assembly | DIN L1K type, 85mm shaft (M085139G) | |
| 1 | 65A | Mechanical Seal Carrier | Cast iron housing | |
| 1 | 29C | Shaft Pin | Hardened steel | |
| 2 | 75A | Sleeve (Protective) | Stainless steel shaft sleeve | |
| 4 | 95A | Stator Tie Bar | High tensile steel tie rod | |
| 4 | 95B | Suction Chamber Extension Tie Bar | High tensile steel tie rod | |
| 1 | 23A | Suction Chamber | Cast iron housing | |
| 1 | 23B | Suction Chamber Extension | Cast iron extension housing | |
| 1 | 23C | Suction Chamber Extension Tube | Cast iron tube section | |
| 1 | 24A | End Cover | Cast iron end plate | |
| 1 | 01A | Pump Body | Cast iron main casing | |
| 1 | 76A | Adaptor Flange | Cast iron adapter plate | |
| 1 | 42A | Thrower | Shaft protection disc | |
| 1 | 15A | Thrower Guard | Protective cover assembly | |
| 1 | 66A | Abutment Ring | Seal support ring | |
| 2 | 62A | Support Foot | Cast iron mounting foot | |
| 1 | 20B | Gland Gasket | Non-asbestos material | |
| 1 | 20C | Suction Chamber Gasket | Non-asbestos material | |
| 1 | 20D | Suction Extension Gasket | Non-asbestos material | |
| 2 | P401 | Toroidal Seal Ring | Nitrile rubber O-ring | |
| 2 | P402 | Toroidal Seal Ring (Large) | Nitrile rubber O-ring | |
| 2 | P403 | Toroidal Seal Ring | Nitrile rubber O-ring | |
| 2 | P404 | Toroidal Seal Ring | Nitrile rubber O-ring | |
| 8 | P513 | Drive Clamp Bolt | High tensile hex head bolt | |
| 8 | P512 | Clamp Bolt (Secondary) | High tensile hex head bolt | |
| 12 | P105 | Hex Nut M16 | Grade 8 steel nut | |
| 12 | P106 | Flat Washer M16 | Bright steel washer | |
| 12 | P107 | Spring Washer M16 | Single coil spring washer | |
| 1 | LOCTITE-5910 | Thread Sealant | Loctite 5910 for flexishaft assembly | |
| 1 | BP-LC2 | Bearing Grease | BP LC2 / Mobilgrease XHP 222 equivalent |

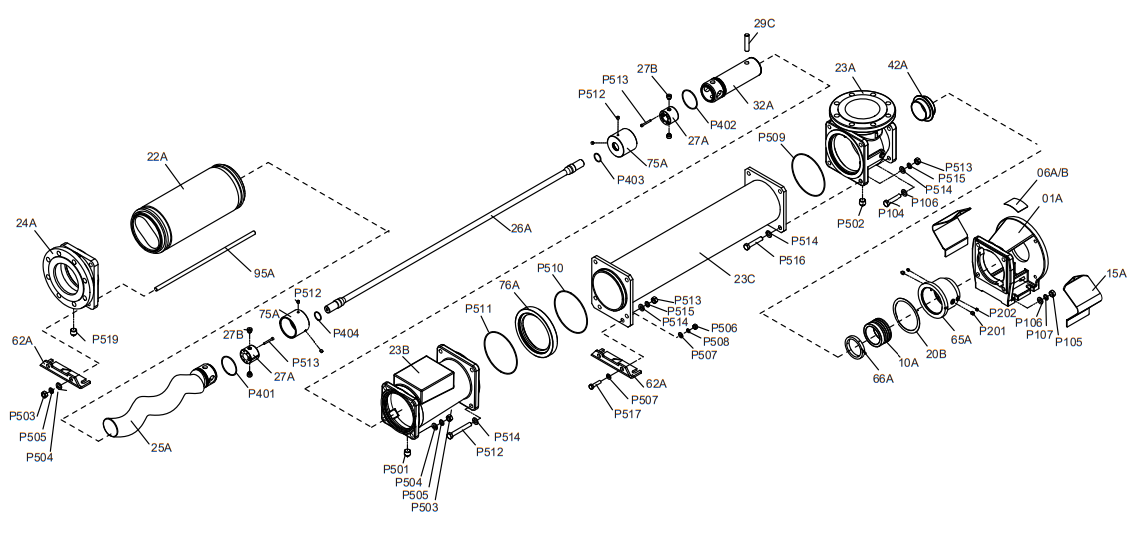

Exploded Parts Views
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model / Curve | Epsilon E19B / Two-Stage |
| Rated Power | Varies by application (typically 7.5 - 15 kW) |
| Voltage / Frequency | 240V/415V / 50Hz (other voltages available) |
| Rated Current | Application dependent |
| Discharge Connection | Flanged (size varies by application) |
| Impeller Type | Progressive Cavity (Helical Rotor/Stator) |
| Installation Type | Horizontal Baseplate Mounted |
Troubleshooting, Common Faults & Solutions
No Discharge from Pump
Likely Cause: Incorrect rotation direction, pump unprimed, or blocked delivery line
Action / Part: Verify motor rotation matches nameplate arrow (bi-directional capable), prime pump with liquid, clear blockages in discharge pipework
Loss of Capacity / Reduced Flow
Likely Cause: Worn rotor/stator elements, insufficient NPSH, air entering suction line, or belt drive slipping
Action / Part: Replace rotor (25A) and/or stator (22A), increase suction head, check gland adjustment for air leaks, re-tension drive belts
Pump Stalls at Start-Up
Likely Cause: Product viscosity too high, low voltage, or flexishaft damage
Action / Part: Heat product to reduce viscosity, verify electrical supply voltage, inspect flexishaft (26A) for visible damage or distortion
Excessive Noise and Vibration
Likely Cause: Misaligned coupling, worn bearings, or insecure pump mounting
Action / Part: Check and adjust alignment to motor/gearbox, replace shaft bearings (lubricate with BP LC2 grease), tighten all baseplate mounting bolts
Excessive Gland or Seal Leakage
Likely Cause: Worn drive shaft, damaged mechanical seal, or inadequate gland flush
Action / Part: Replace drive shaft (32A) if gland area worn, install new mechanical seal assembly (10A - M065139G), ensure proper seal flush fluid flow
Motor Overheats / Excessive Power Draw
Likely Cause: Delivery pressure above rated limit, gland overtightened, or pump speed too high
Action / Part: Check for delivery line blockages, loosen packed gland to allow slight drip, reduce pump speed, verify relief valve setting
Rapid Stator Wear / Premature Failure
Likely Cause: Dry running, abrasive product, or product temperature exceeding rating
Action / Part: Install dry-run protection device, ensure pump always primed before starting, cool product or upgrade to temperature-rated stator material, replace with new stator (22A)
Flexishaft Failure or Damage
Likely Cause: Excessive torque, visible damage to protective coating, or shaft distortion
Action / Part: Replace flexishaft assembly (26A - 4.4 kg), check drive clamp bolts (P513) are torqued to 10 Nm, apply Loctite 5910 to shaft assembly per manual
