Mono EZstrip Compact Z14 / Z15 Pump
Spare Parts for EZstrip Compact Z14 / Z15 Pump
Product Summary
The Mono EZstrip Compact Z14 is a revolutionary Maintain-in-Place (MIP) progressing cavity pump designed to reduce maintenance time by up to 95%. Based on the reliable Compact C Range geometry (Size 14), it features a patented split suction chamber and coupling rod, allowing the entire drive train, rotor, and stator to be removed without disconnecting pipework or electrical feeds.
- Maintain-in-Place (MIP): Full drive train removal can be achieved in less than 4 minutes, significantly reducing downtime.
- Split Suction Chamber: Allows immediate access to the coupling rod and auger area for de-ragging without full disassembly.
- Pre-Assembled Drive Train: Available as a "drop-in" spare to ensure rapid turnaround during critical maintenance.
- Interchangeability: Can be retrofitted into existing Mono Compact C14 installations with no modification to pipework.
- Low Running Speeds: Reduces wear on the rotor and stator, extending the life of the pump in abrasive sludge applications.
Spare Parts List
| Select | Qty | Part Number | Description | Material / Spec |
|---|---|---|---|---|
| 1 | POS-25A | Rotor (Size 14) | Stainless Steel 316 / HCP | |
| 1 | POS-22A | Stator (Size 14) | Nitrile / NBR | |
| 1 | POS-26A | Coupling Rod (Split Design) | Stainless Steel | |
| 2 | POS-29A | Universal Joint Kit (Pin/Bush) | Steel / Rubber | |
| 2 | POS-65A | Sealing Boot | Nitrile | |
| 2 | POS-28A | Coupling Rod Pin | Hardened Steel | |
| 1 | POS-P1 | Mechanical Seal | SiC/SiC | |
| 1 | POS-01A | Suction Chamber (EZstrip) | Cast Iron / Stainless | |
| 1 | POS-32A | Drive Shaft | Stainless Steel | |
| 1 | POS-GK-01 | Gasket / O-Ring Set | Composite |

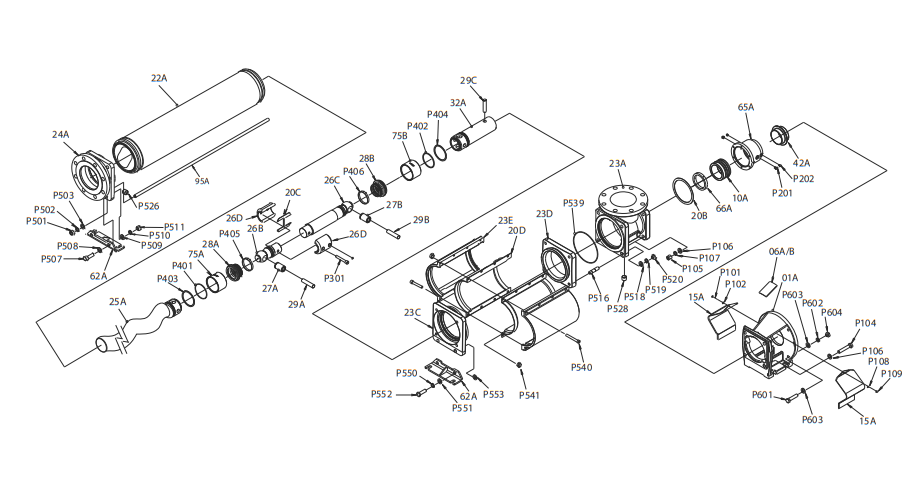

Exploded Parts Views
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model / Curve | EZstrip Compact Z14 (C14 Ref) |
| Rated Power | 0.37 kW - 1.1 kW (Configurable) |
| Voltage / Frequency | 230/400V / 50Hz (Typical) |
| Rated Current | Motor Dependent |
| Discharge Connection | 50mm / 2" (Flanged/Threaded) |
| Impeller Type | Helical Rotor (Progressing Cavity) |
| Installation Type | Horizontal Surface Mounted |
Troubleshooting, Common Faults & Solutions
Pump No Flow / Low Flow
Likely Cause: Worn Stator or Rotor (Slippage).
Action / Part: Inspect Stator (Pos 22A) and Rotor (Pos 25A) for wear. Tighten or replace.
Pump is Noisy (Knocking)
Likely Cause: Universal Joint wear or lack of lubrication.
Action / Part: Inspect Universal Joint Kit (Pos 29A) and re-grease.
Mechanical Seal Leaking
Likely Cause: Seal faces damaged by dry run or debris.
Action / Part: Replace Mechanical Seal (Pos P1).
Stator Premature Wear
Likely Cause: Dry running or excessive pressure.
Action / Part: Check dry run protection. Replace Stator (Pos 22A).
Drive Train Vibration
Likely Cause: Coupling rod bent or misalignment.
Action / Part: Check Coupling Rod (Pos 26A) and Alignment.
