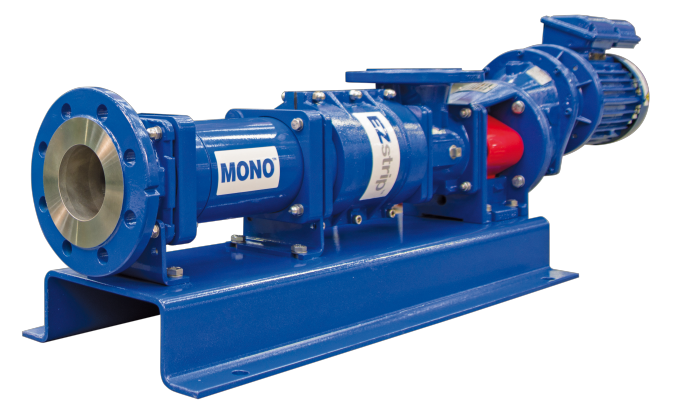

Mono EZstrip Z1AA / Z1AB Pump
Spare Parts for EZstrip Compact Z1AA / Z1AB Pump
Product Summary
The Mono EZstrip Z1AA / Z1AB progressive cavity pumps are heavy-duty industrial workhorses engineered for demanding municipal and industrial applications. Featuring innovative split-design construction with pin joint drive, these pumps enable rapid rotor/stator replacement without motor removal, minimizing downtime in critical high-volume transfer operations.
- EZstrip Quick-Change Design: Revolutionary split coupling rod and suction chamber construction allows complete rotor/stator replacement without disconnecting motor or drive, reducing maintenance time by up to 75%
- Dual Configuration Power: Available as single-stage (Z1AA) for high-volume applications or two-stage (Z1AB) for enhanced pressure capability in demanding industrial processes
- Heavy-Duty Construction: Robust cast iron or stainless steel design with oversized components engineered for continuous operation in abrasive municipal wastewater, mining slurry, and industrial sludge applications
- Superior Self-Priming: Achieves suction lift exceeding 8 metres with exceptional solids-handling capability, ideal for challenging installations and thick, viscous products
- Bi-Directional Capability: Reversible rotation functionality provides operational versatility for system flushing, blockage clearing, and specialized process requirements
Spare Parts List
| Select | Qty | Part Number | Description | Material / Spec |
|---|---|---|---|---|
| 1 | Z1AA-KIT-FULL | Complete Rotor/Stator Service Kit (Z1AA) | Single-stage kit with gaskets | |
| 1 | Z1AB-KIT-FULL | Complete Rotor/Stator Service Kit (Z1AB) | Two-stage kit with gaskets | |
| 1 | Z1A-KIT-SEAL | Mechanical Seal Service Kit | Complete seal assembly with gaskets | |
| 1 | Z1A-KIT-PIN | Pin Joint Service Kit | Complete joint assembly with pins | |
| 1 | 22A | Stator Assembly | Nitrile rubber - Z1AA: 37.4 kg / Z1AB: 74.4 kg | |
| 1 | 25A | Rotor Assembly | Stainless steel - Z1AA: 38.8 kg / Z1AB: 72.4 kg | |
| 1 | 26B | Split Coupling Rod (Rotor Side) | Pin joint type - Z1AA: 12.3 kg / Z1AB: 15.3 kg | |
| 1 | 26C | Split Coupling Rod (Shaft Side) | Pin joint type - hardened steel | |
| 1 | 26D | Coupling Rod Sleeve Halves Assembly | Split sleeve design for EZstrip | |
| 1 | 32A | Drive Shaft | 85mm diameter - Z1AA: 8.7 kg / Z1AB: 9.5 kg | |
| 1 | 10A | Mechanical Seal Assembly | DIN L1K type, 85mm shaft (M085139G) | |
| 1 | 65A | Mechanical Seal Carrier | Cast iron housing | |
| 1 | 27A | Coupling Rod Bush | Hardened steel | |
| 1 | 27B | Coupling Rod Bush (Drive End) | Hardened steel | |
| 2 | 29A | Coupling Rod Pin | Hardened steel | |
| 2 | 29B | Coupling Rod Pin (Drive End) | Hardened steel | |
| 1 | 29C | Shaft Pin | Hardened steel | |
| 1 | 28A | Sealing Cover (Suction End) | Rubber boot seal | |
| 1 | 28B | Sealing Cover (Drive End) | Rubber boot seal | |
| 1 | 75A | Rotor/Shaft Sleeve | Stainless steel protective sleeve | |
| 1 | 75B | Rotor/Shaft Sleeve (Secondary) | Stainless steel protective sleeve | |
| 4 | 95A | Stator Tie Rod | High tensile steel tie rod | |
| 1 | 23A | Suction Chamber | Cast iron housing | |
| 1 | 23C | Suction Chamber Extension Flange (Stator Side) | Cast iron flange | |
| 1 | 23D | Suction Chamber Extension Piece (Drive Side) | Cast iron extension | |
| 2 | 23E | Suction Chamber Halves | Split design for EZstrip access | |
| 1 | 24A | End Cover | Cast iron end plate | |
| 1 | 01A | Pump Body | Cast iron main casing | |
| 1 | 42A | Thrower | Shaft protection disc | |
| 1 | 15A | Thrower Guard | Protective cover assembly | |
| 1 | 66A | Abutment Ring | Seal support ring | |
| 2 | 62A | Support Foot | Cast iron mounting foot | |
| 1 | 20B | Gland Gasket | Non-asbestos material | |
| 1 | 20C | Coupling Sleeve Gasket | Non-asbestos material | |
| 2 | 20D | Suction Chamber Half Gasket | Non-asbestos material | |
| 2 | P401 | Seal Ring | Toroidal seal ring | |
| 2 | P402 | Seal Ring (Large) | Toroidal seal ring | |
| 2 | P403 | Spiral Retaining Ring | Spring steel | |
| 2 | P404 | Spiral Retaining Ring (Secondary) | Spring steel | |
| 2 | P405 | Sealing Cover Tie | Stainless steel band | |
| 2 | P406 | Sealing Cover Tie (Drive End) | Stainless steel band | |
| 8 | P301 | Socket Cap Screw (Coupling Rod) | High tensile socket head | |
| 8 | P540 | Socket Cap Screw (Suction Chamber) | High tensile socket head | |
| 8 | P541 | Hex Nut (Socket Cap Screw) | Grade 8 steel nut | |
| 8 | P105 | Hex Nut | Grade 8 steel nut | |
| 16 | P106 | Flat Washer | Bright steel washer | |
| 16 | P107 | Spring Washer | Single coil spring washer | |
| 1 | P201 | Taper Plug | Pipe thread plug | |
| 1 | P202 | Taper Plug (Secondary) | Pipe thread plug | |
| 1 | P203 | Abutment Ring Grub Screw | Socket set screw | |
| 1 | KLUBER-GH6 | Joint Lubrication Oil | Klübersynth GH6-460 (Z1AA: 95ml / Z1AB: 175ml) | |
| 1 | BP-LC2 | Bearing Grease | BP Energrease LC2 or equivalent |

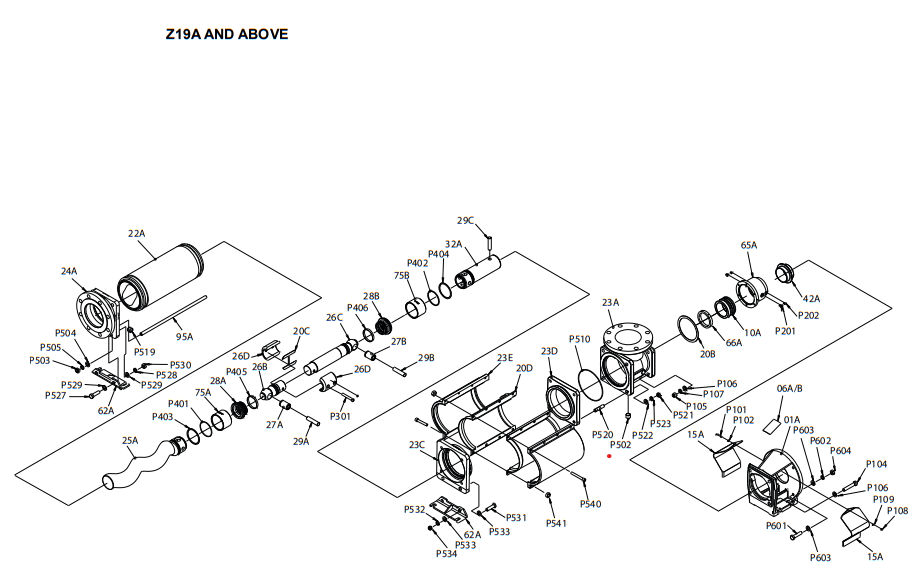

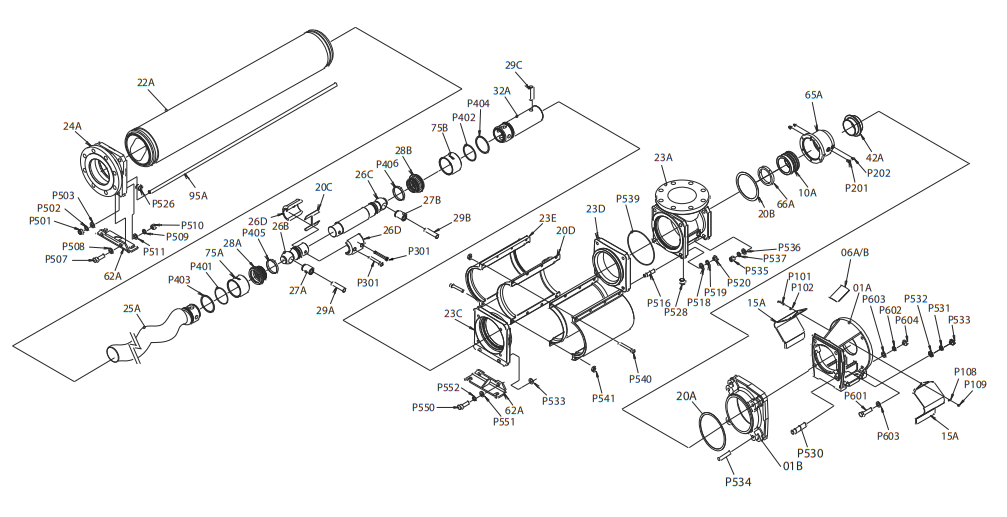

Exploded Parts Views
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model / Curve | EZstrip Z1AA (Single-Stage) / Z1AB (Two-Stage) |
| Capacity Range | 125-165 m³/h @ 400-450 rpm |
| Rated Power | Varies by application (typically 15 - 37 kW) |
| Voltage / Frequency | 240V/415V / 50Hz (other voltages available) |
| Discharge Connection | Flanged (size varies by application) |
| Impeller Type | Progressive Cavity (Helical Rotor/Stator) |
| Installation Type | Horizontal Baseplate Mounted |
Troubleshooting, Common Faults & Solutions
Excessive build-up of rags (De-ragging)
Likely Cause: Ragging is common in waste water; EZstrip design mitigates downtime.
Action / Part: Remove suction chamber screws, split chamber, remove rags manually (2.5 mins).
No flow or low flow
Likely Cause: Worn stator, wrong rotation, or blocked suction.
Action / Part: Inspect Stator (Z18/Z19) for wear, check motor rotation.
Noisy Operation
Likely Cause: Worn universal joints or bearings.
Action / Part: Replace Joint Kit (Pin/Bush) or Drive Shaft Bearings.
Product leaking from pump
Likely Cause: Mechanical seal failure or loose flanges.
Action / Part: Replace Mechanical Seal or tighten suction chamber gaskets.
Pump vibrates excessively
Likely Cause: Misalignment or worn rotor/stator.
Action / Part: Check coupling alignment and inspect Rotor/Stator fit.
