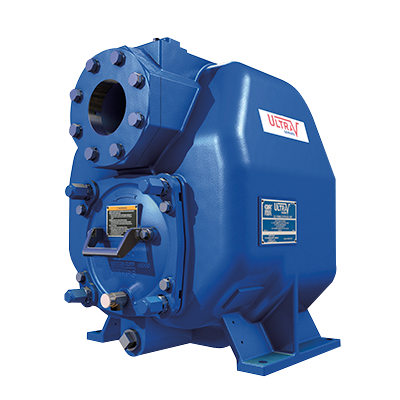

Gorman-Rupp V4A60-B Ultra V Series Pump
Spare Parts for the Gorman-Rupp V4A60-B High-head self-priming pump
Product Summary

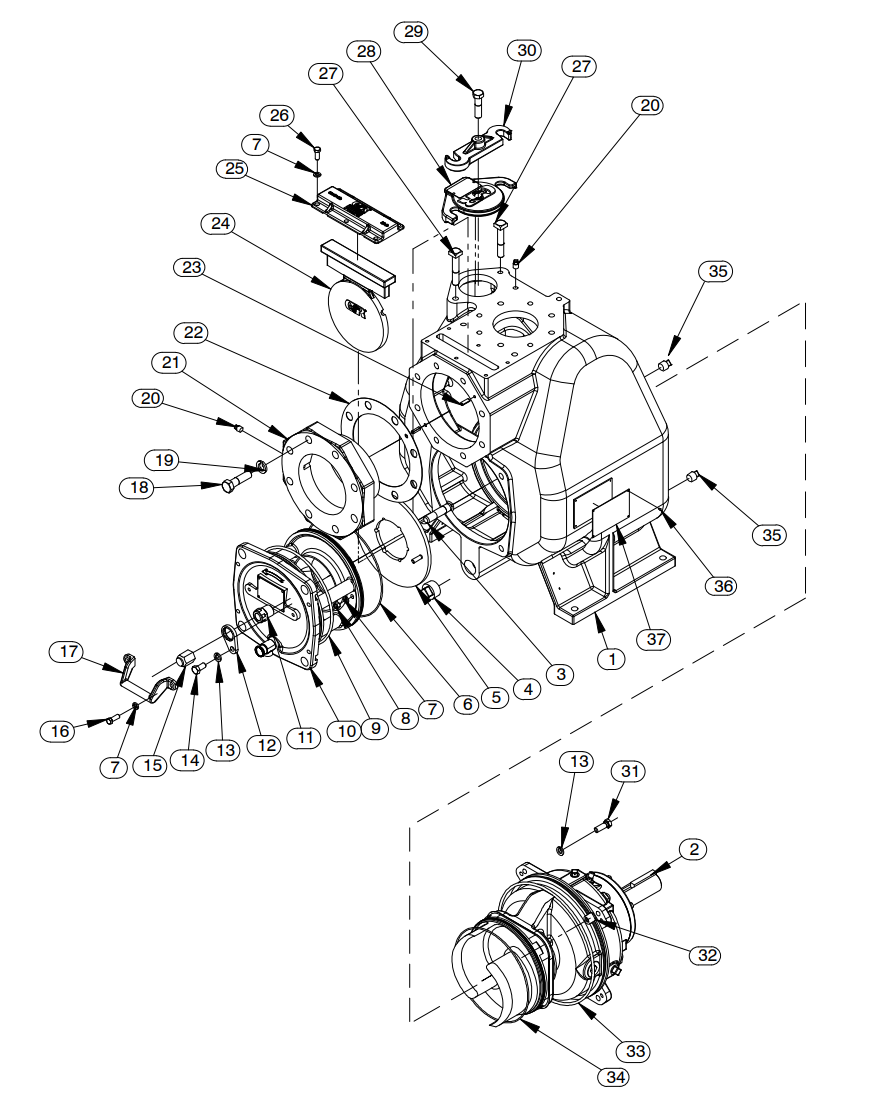

Genuine OEM spare parts for the Gorman-Rupp V4A60-B, a high-head self-priming solids-handling pump with the same easy-access service design as the Super T. Impellers, seals, wear parts, check valves and bearings are listed below with Gorman-Rupp part numbers from manual OM-05816-02.
Spare Parts List
✓ Tick the parts you need. Codes are as printed in the Gorman-Rupp parts list; build variants and older serial numbers can use different parts, so pick your model in the form below. Not sure? Add a photo of the nameplate (model and serial number) and we’ll match the parts for you.
| Select | Part (as printed by Gorman-Rupp) | Part number & reference |
|---|---|---|
| Wear & Service Parts | ||
| Impeller | Part no. 38615-104 11010 · Item 1 | |
| Cartridge Seal Assy | Part no. 46513-154 · Item 3 | |
| Wear Plate Assy | Part no. 46451-760 24150 · Item 5 | |
| Flap Valve Assy | Part no. 46411-151 24010 · Item 27 | |
| Flap Valve Cover | Part no. 38346-619 17040 · Item 28 | |
| Repair Rotating Assy (V4A60-B /WW) | Part no. 44163-459 | |
| Cartridge Seal Assy (stainless steel option) | Part no. 46513-159 | |
| Wear Plate Assy (hard iron option) | Part no. 46451-760 24160 | |
| Wear Plate Assy (stainless steel option) | Part no. 46451-760 24170 | |
| Seals, Bearings & Shaft | ||
| O-Ring | Part no. 25152-273 · Item 6 | |
| O-Ring | Part no. S1674 · Item 9 | |
| O-Ring | Part no. S1472 · Item 20 | |
| Gasket | Part no. 38683-660 19370 · Item 25 | |
| Fill Port Gasket | Part no. 50G 19210 | |
| O-Ring | Part no. S1676 · Item 36 | |
| Seal Plate | Part no. 38272-360 10000 · Item 4 | |
| Gasket | Part no. 38687-059 20000 · Item 5 | |
| Oil Seal | Part no. S1907 · Item 6 · Qty 3 | |
| Gasket | Part no. 38683-474 18000 · Item 20 | |
| Ball Bearing | Part no. 23287-014 · Item 23 | |
| Impeller Shaft | Part no. 38514-828 16000 · Item 25 | |
| Ball Bearing | Part no. 23251-019 · Item 26 | |
| O-Ring | Part no. 25154-026 · Item 27 · Qty REF | |
| Seal Plate (hard iron option) | Part no. 38272-360 1102H | |
| Seal Plate (stainless steel option) | Part no. 38272-360 17070 | |
| Impeller Shaft (stainless steel option) | Part no. 38514-828 1706H | |
| Other Core Parts | ||
| Back Cover Assy | Part no. 42111-461 · Item 10 | |
| Inspect Cover Assy | Part no. 42111-456 · Item 19 | |
| Pressure Relief Valve | Part no. 26662-007 | |
| Suction Flange | Part no. 38641-532 10000 · Item 24 | |
| Sight Gauge | Part no. S1471 · Item 14 · Qty 2 | |
How we confirm the exact part: Part numbers on this page are as printed in Gorman-Rupp manual OM-05816-02, parts list for serial numbers 1727335 and up. Pumps with earlier serial numbers, an “N” serial suffix or a different build can use different parts, so send the serial number or a nameplate photo and we’ll confirm the right part before we quote.
Service Intervals & When to Replace
- Daily: check general condition (temperature, noise, vibration, leaks) and pump performance (gauges, speed, flow).
- Lubrication: check bearing and seal-cavity lubrication weekly; replace the oil annually (SAE No. 30 non-detergent oil where specified).
- Every six months: inspect front impeller clearance (wear plate) and rear clearance (seal plate) and adjust or replace worn parts.
- Annually: inspect the check valve, bearings, shaft deflection and pump-to-driver alignment; clean the pressure relief valve.
- New applications: inspect wearing parts after the first 250 hours to set your wear rate. Intervals assume about 4,000 hours a year of intermittent duty; shorten them for abrasive or continuous duty.
Models
Model code: V4A60-B. Suffixes such as /F, /FM, /WW and /WWS mark build variants (for example flanged or metric-flanged ports) that change some parts, so check the full model code and serial number on the nameplate.
Models & Key Specifications
| Model | Series | Ports (suction x discharge) | Max solids | Seal (as listed) | Parts list |
|---|---|---|---|---|---|
| V4A60-B | Ultra V Series | 6" x 4" (150 x 100 mm) | 3.00" (76 mm) | Cartridge Seal Assy | OM-05816-02 (S/N 1727335+) |
Port size and solids handling from Gorman-Rupp model data; parts from manual OM-05816-02. Typical uses: high-head sewage lift stations, long-run transfer and mine dewatering.
Troubleshooting
Pump fails to prime
Likely cause: Not enough liquid in the casing, a contaminated or damaged suction check valve, an air leak in the suction line, or a leaking or worn seal or gasket. Action: Fill the casing, clean or replace the check valve, correct leaks and check pump vacuum; replace a leaking or worn seal or gasket.
Low flow or pressure
Likely cause: Impeller or other wearing parts worn or damaged, impeller clogged, or suction lift too high. Action: Replace worn parts and check the impeller is centred and turns freely (adjust wear plate clearance); clear debris; reduce suction lift.
Pump clogs frequently
Likely cause: Discharge flow too slow, a clogged or binding check valve, or liquid too thick. Action: Open the discharge valve fully to raise the flow rate, clean the check valve, and dilute if possible.
Excessive noise
Likely cause: Cavitation, entrained air, loose mounting, or a clogged or damaged impeller. Action: Reduce suction lift and losses, remove the air source, secure the mounting, and clear or replace the impeller.
Bearings run too hot
Likely cause: Low or incorrect lubricant, unsupported piping or a misaligned drive. Action: Check lubricant type and level, support the piping and align the drive.
