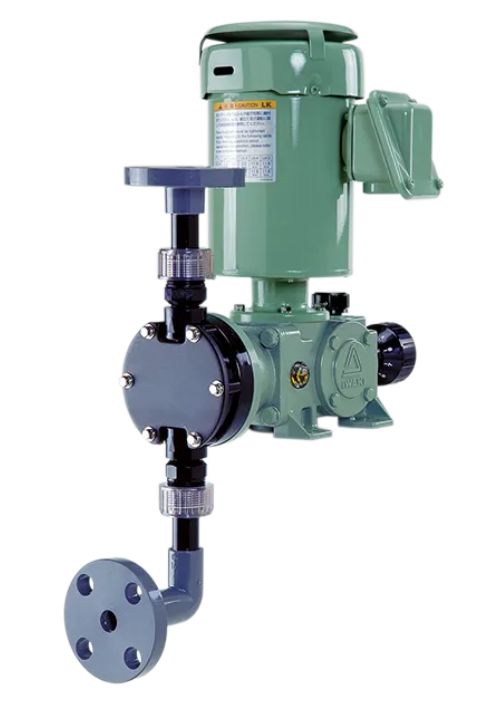

Iwaki LK-F45 VC Dosing Pump
Spare Parts for LK-F45 VC Dosing Pump
Product Summary
The Iwaki LK-F45 is a robust motor-driven mechanical diaphragm metering pump designed for precise chemical dosing. Featuring a reliable dual-cam drive system with a built-in worm gear reducer, it offers exceptional linearity and durability. The LK-F series is ideal for aggressive chemical applications in water treatment and industrial processes, supporting flow rates up to 1.0 L/min.
- Dual-Cam Drive: Compact and rigid mechanism ensures maximum wear resistance and continuous operation reliability.
- High Precision: Discharge accuracy (repeatability) is within ±2% FS with excellent linearity.
- Mechanical Diaphragm: Direct-drive mechanical actuation eliminates hydraulic oil, simplifying maintenance.
- Versatile Materials: Standard VC configuration features a PVC pump head, Ceramic valve balls, and FKM seals for acid resistance.
- Outdoor Rated: Fully enclosed oil bath lubrication system and outdoor-rated motor allow for external installation.
Spare Parts List
| Select | Qty | Part Number | Description | Material / Spec |
|---|---|---|---|---|
| 1 | L0109 | Diaphragm | PTFE+EPDM | |
| 2 | L0093 | Valve Ball | Alumina Ceramic | |
| 2 | L0095 | Valve Seat | PVC | |
| 2 | L0097 | Valve Gasket | PTFE | |
| 2 | L0103 | O-Ring (P-32) | FKM-A | |
| 2 | L0016 | O-Ring (P-20) | FKM-A | |
| 1 | L1500 | Pump Head | PVC | |
| 2 | L0094 | Valve Guide | PVC | |
| 2 | L0359 | Valve Set (VC) | - | |
| 2 | L0101 | Adapter (Hose) | PVC | |
| 1 | L0110 | Retainer Plate | Steel | |
| 2 | L1539 | Nut | PVC | |
| 8 | L1166 | Pump Head Bolt | Steel | |
| 1 | L1224 | Reinforcing Plate | Steel | |
| 1 | L1128 | Bracket Assembly | FC200 (Cast Iron) | |
| 1 | L0794 | Oil Seal | NBR | |
| 2 | L1110 | Ball Bearing | 6201 | |
| 1 | L0752 | Oil Gauge | - | |
| 1 | L1146 | Return Spring | Steel | |
| 1 | L1140 | Control Shaft | Steel |

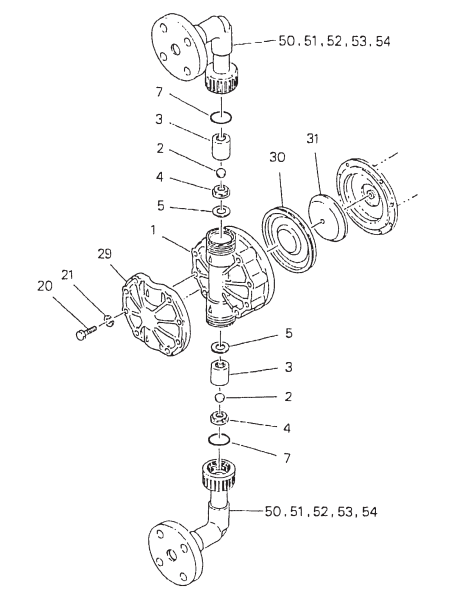

Exploded Parts Views
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model / Curve | LK-F45 (VC Type) |
| Rated Power | 0.2 kW |
| Voltage / Frequency | 220-240/380-415V / 50/60Hz |
| Rated Current | Approx. 1.2 A |
| Discharge Connection | VP16 Union / 15mm Flange / 12x18mm Hose |
| Impeller Type | Mechanical Diaphragm |
| Installation Type | Surface Mounted / Flooded Suction |
Troubleshooting, Common Faults & Solutions
Motor does not rotate
Likely Cause: Disconnected wire or blown fuse.
Action / Part: Check wiring and power supply voltage.
Pump does not discharge
Likely Cause: Air lock in pump head or suction lift too high.
Action / Part: Release air via air vent screw or check suction piping.
Flow rate fluctuates
Likely Cause: Debris in valve set or worn valve balls.
Action / Part: Clean or replace Valve Balls (L0093) and Seats (L0095).
Liquid leakage from pump head
Likely Cause: Damaged diaphragm or loose bolts.
Action / Part: Replace Diaphragm (L0109) and retighten head bolts (L1166).
Abnormal noise
Likely Cause: Worn worm gear or bearings.
Action / Part: Inspect Drive Unit and replace Bearings (L1110).
