Watson Marlow Bredel 50 Hose Pump
Spare Parts for Bredel 50 Hose Pump
Spare Parts List
Genuine Bredel spare parts for the Watson-Marlow Bredel 50 hose pump (per OEM manual m-bredel-40-100-en). The hose element is the wear item - select the material to suit your fluid. The Item column is the manual's exploded-diagram reference (assembly + position); part numbers are the real Bredel order codes.
| Select | Qty | Item (assy / pos) | Part Number | Description | Material / Spec |
|---|---|---|---|---|---|
| Wear & Consumable Parts | |||||
| 1 | Housing 14 | 28-1007884 | Hose element - NR, metering duty | Natural rubber | |
| 1 | Housing 14 | 28-1000065 | Hose element - NR, transfer duty | Natural rubber | |
| 1 | Housing 14 | 28-050040 | Hose element - NBR | NBR / nitrile | |
| 1 | Housing 14 | 28-050061 | Hose element - NBR Food | NBR food-grade | |
| 1 | Housing 14 | 28-050065 | Hose element - F-NBR | Fluorinated nitrile | |
| 1 | Housing 14 | 28-050075 | Hose element - EPDM | EPDM | |
| 1 | Housing 14 | 28-050070 | Hose element - CSM | CSM / Hypalon | |
| 2 | Rotor 9 | 28-250110 | Pressing shoe - aluminium | Aluminium | |
| 2 | Rotor 9 | 28-250109A | Pressing shoe - epoxy w/ stainless insert | Epoxy + 316 SS insert | |
| 14 | Rotor 8 | 28-250107 | Shim (sets hose compression) | - | |
| 1 | - | 28-904143 | Bredel Genuine Hose Lubricant - 10 L can | Genuine Bredel lubricant | |
| 1 | Rotor 14 | 28-29180202 | Wear ring | - | |
| 2 | Rotor 11 | 28-B142060 | Bearing | - | |
| Seals & Gaskets | |||||
| 1 | Housing 13 | 28-S213611 | Seal (housing/shaft) | - | |
| 1 | Housing 8 | 28-S122711 | O-ring (housing) | - | |
| 1 | Rotor 4 | 28-S122541 | O-ring (rotor) | - | |
| 1 | Cover 9 | 28-250123 | Seal ring (quad ring) | - | |
| 1 | Cover 5 | 28-250156 | Gasket (inspection window) | - | |
| 5 | Housing 2 | 28-29040257 | Packing ring | - | |
| Rotor, Housing & Cover | |||||
| 1 | Rotor 7 | 28-250103 | Rotor | - | |
| 1 | Rotor 3 | 28-250104 | Drive shaft | - | |
| 1 | Rotor 10 | 28-F343071 | Retaining ring (bearing) | - | |
| 1 | Housing 1 | 28-250101 | Pump housing | - | |
| 1 | Housing 10 | 28-250203 | Hub | - | |
| 1 | Cover 8 | 28-250102 | Pump cover | - | |
| 1 | Cover 4 | 28-250155 | Inspection window | - | |
| 1 | Cover 10 | 28-1009002 | Window guard | - | |
| Connections - Flanges & Inserts | |||||
| 2 | Flange 7 | 28-050186 | Hose insert - AISI 316 | 316 stainless | |
| 2 | Flange 7 | 28-240189 | Hose insert - PP | Polypropylene | |
| 2 | Flange 7 | 28-250187 | Hose insert - PVC | PVC | |
| 2 | Flange 7 | 28-250190 | Hose insert - PVDF | PVDF | |
| 2 | Flange 5 | 28-C101045 | Hose clamp | - | |
| 2 | Flange 6 | 28-250199 | Flange - EN, stainless (other standards/steel on request) | 316 SS | |
Part numbers are genuine Bredel order codes from the OEM manual. Hose, pressing shoes and inserts are offered in several materials - choose to suit your fluid; if unsure, send your pump nameplate and we will confirm. This is a curated list of the most-ordered parts; the full parts list (brackets, fasteners, breather, revolution counter, heavy-duty options) is available on request.

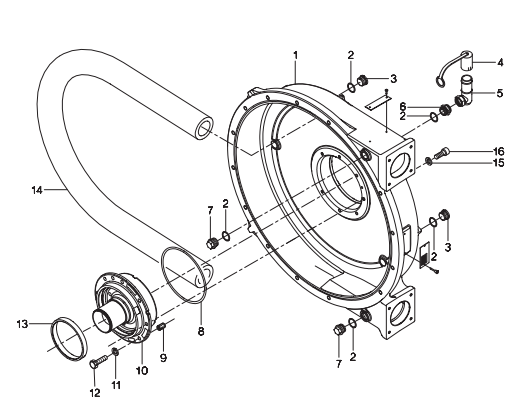

Exploded Parts Views
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model / Curve | Bredel 50 |
| Rated Power | Dependent on drive configuration (see motor nameplate) |
| Voltage / Frequency | Configurable (see motor nameplate) |
| Rated Current | See Motor Nameplate |
| Discharge Connection | DN 50 (2") Flange |
| Impeller Type | Rotor with Pressed Shoes |
| Installation Type | Horizontal Floor Mount |
Troubleshooting, Common Faults & Solutions
Pump hose burst (leakage)
Likely Cause: Excessive discharge pressure or chemical attack.
Action / Part: Check system pressure and hose compatibility. Replace Hose.
Low capacity (flow)
Likely Cause: Suction line restricted or hose worn (loss of restitution).
Action / Part: Clear suction or replace Hose.
Pump overheating
Likely Cause: Low lubricant level or incorrect shim adjustment.
Action / Part: Refill Hose Lubricant (28-904143) or adjust shims.
Excessive noise/knocking
Likely Cause: Cavitation (starved suction) or worn bearings.
Action / Part: Increase suction head or replace Bearings (28-B142060).
Short hose life
Likely Cause: Pump speed too high for application or high temperature.
Action / Part: Reduce speed or check process temperature limits.
Online Resources
Request for Quotation
Selected Parts:
- No parts selected
Not sure which parts? Just send a photo of the nameplate or part below.
Bredel 50 spare parts: frequently asked questions
Tap a question to see the answer.
What are the wear parts on a Bredel 50 hose pump?
The hose element is the main wear item. Other wear and consumable parts on the list are the pressing shoes (aluminium, or epoxy with a stainless insert), the shims that set hose compression, hose lubricant in 10 L cans, the wear ring and the bearings.
Which hose materials are available for the Bredel 50?
The Bredel 50 hose element is listed in natural rubber (metering or transfer duty), NBR, food-grade NBR, fluorinated nitrile (F-NBR), EPDM and CSM/Hypalon. Choose the material to suit your fluid. If you're not sure what's fitted, send us your nameplate and we'll confirm.
Can I use Bredel 40 or 65 parts on a Bredel 50?
Don't assume so. The Bredel 40 to 100 share one OEM manual (m-bredel-40-100-en), but this page lists the Bredel 50's own order codes; for example, the NBR hose element is 28-050040. Order against your exact model, or send a nameplate photo and we'll check. See the Bredel 40 spare parts page for the smaller size and the Bredel 65 spare parts page for the next size up.
Are other Bredel 50 parts available beyond this list?
Yes. The page shows the most-ordered parts. Brackets, fasteners, the breather, the revolution counter and heavy-duty options are available on request. Tick the parts you need, add any extras in the quote form, and we'll confirm the correct parts before quoting. Browse all Watson-Marlow Bredel spare parts.
